Collections

AAA stores data records as JSON, which are gathered together into collections. Consider collections as a cache or SQL table. You can use them for:

• Retrieving provisioned data (via API, for instance).
• Holding temporary data.
• Keeping mappings between different entities (e.g., Certificate SN with device MAC).
• Storing authentication or accounting data.
• Creating usage information.
• Writing policies based on stored information
• etc

Never store secrets or other sensitive values in a collection. Use Vault instead.

For more information about cache functions, please check Cache Collection functions

Default collections

Two collections are always present and are managed by the system:

• Vault - stores secrets and other sensitive values. Prefer it over a regular collection whenever the data is confidential.
• config - platform configuration templates and system defaults, available in PolicyLogic as radius.config. See Variables groups - radius.

These two collections have limited actions available on the Collections page and are not listed alongside your account collections.

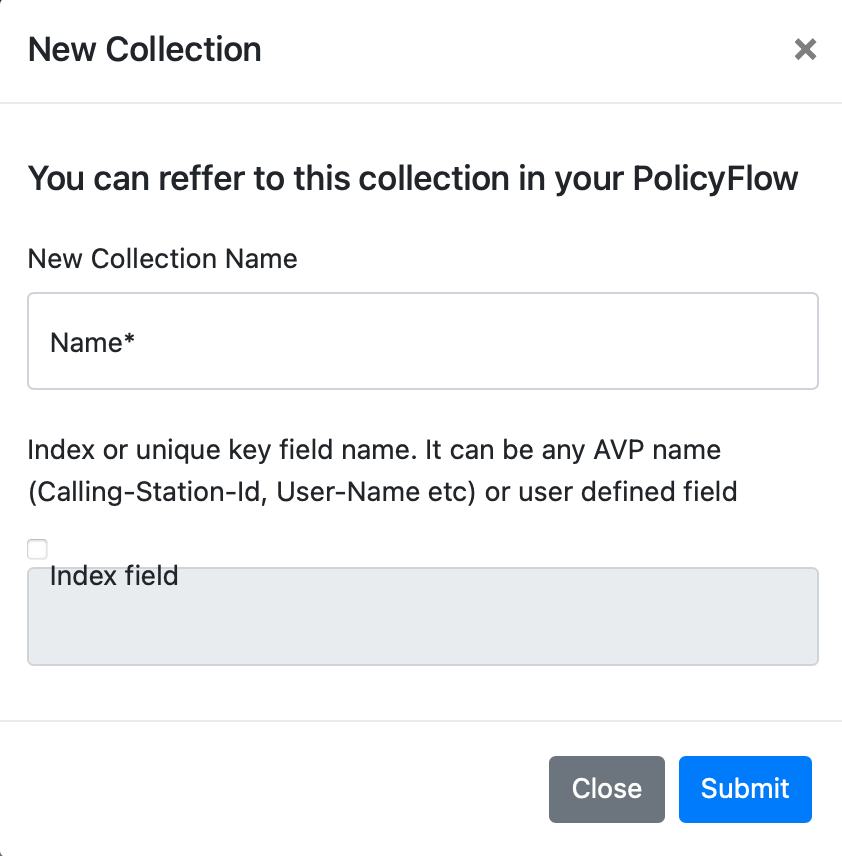

Adding new collection

To add a new collection, click "New Collection".

Properties

name: Name field must be unique. This name will be used in querying Collections

index: Optional. Specify a field to index for quicker lookups or to enforce uniqueness, for example Calling-Station-Id or User-Name. You can add more indexes later, or leave it empty and create one when needed.

Managing indexes

Each collection is listed with its current indexes. Click the trash icon on an index to remove it, or the + icon to add a new one. When creating an index you choose a sort order (ascending or descending) and whether it should be unique, which causes the database to reject duplicate values for that field.

Working with entries in a collection

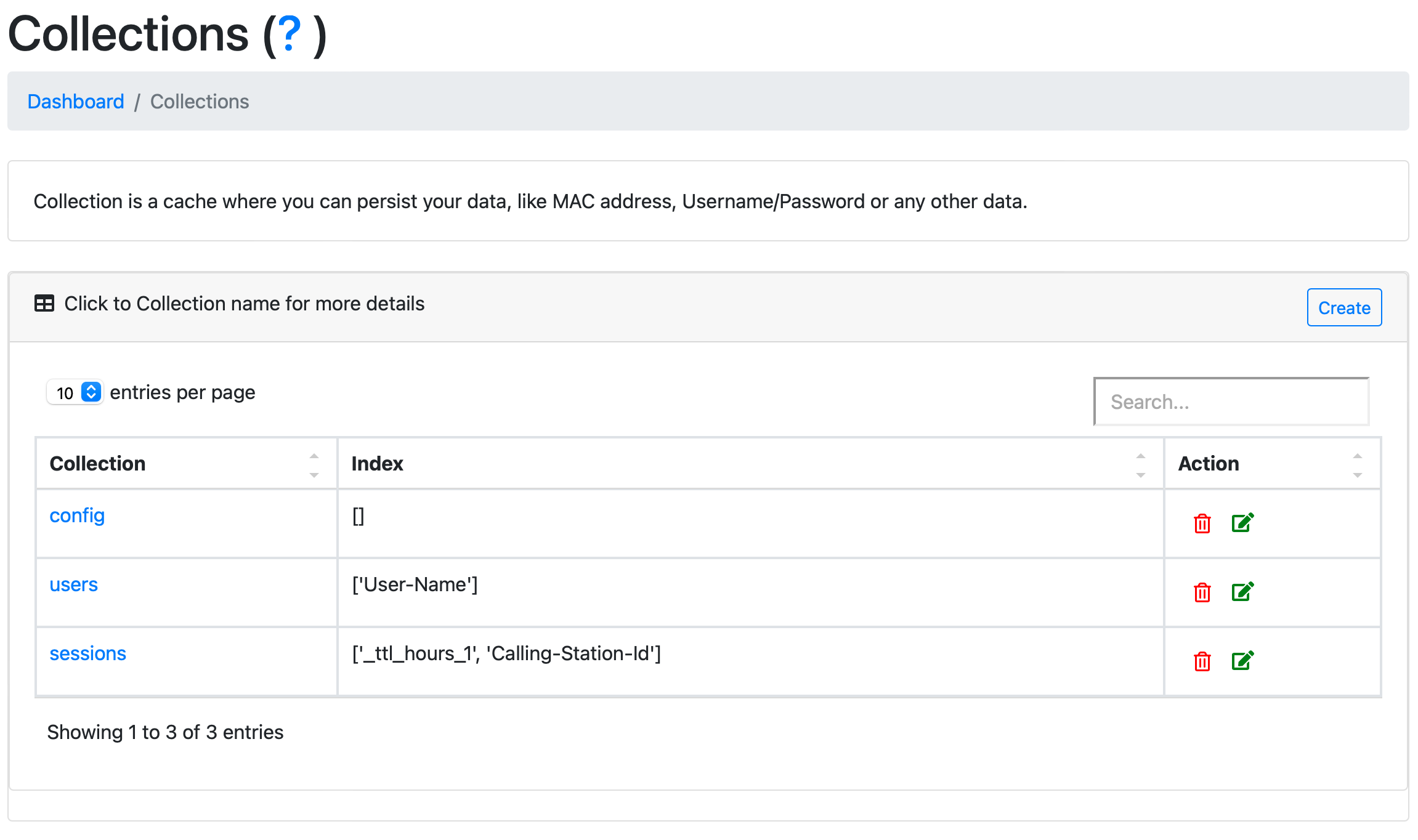

Open a collection from the list to view, search, and manage its entries.

Uploading entries

Upload one or more JSON files to add entries in bulk. An entry whose indexed field matches an existing entry replaces it. A sample file is available from the collection page ("Download example file").

Searching

For collections other than config, you can filter entries by a date range and search across all fields. By default only a limited number of entries are returned; narrow or widen the date range to see more. Results can also be exported as a dataset instead of viewed in the table.

Entries table

Every entry shows its creation date, its indexed value (if the collection has an index), and its JSON data. From here you can:

• Create entry - add a new JSON document to the collection.
• Clone - duplicate an existing entry so you can edit and save it as a new one.
• Delete - remove an entry.

Renaming or cloning a collection

To rename a collection, click the edit button next to it and enter a new name. To clone a collection, click the clone button and enter a name for the copy.

Removing a collection

To remove a collection, click the trash icon next to it and confirm.
